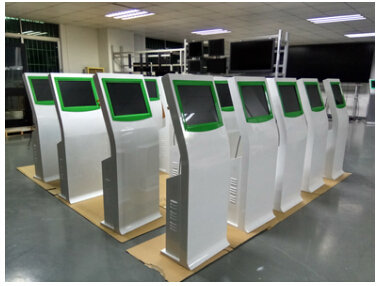

    17 inch Floor Stand Touch Screen All in One Kiosk


    KEY FEATURE




    A+ LCD panel

    FHD 1280x1024 with LED backlight

    7*24 working uninterrupted

    Multi-language



    Touch: 2/4/6/10 points IR touch or others

    Solid cold rolled aluminum-alloy frame,

    AG 4mm tempered glass,

    Locks and Keys for SECURITY



    Optional: PC/Android  WIFI/3G

             Half-standing / Floor-standing





    Specification:

    Model Number

    VT-CM170A











    Panel Details

    Panel Type

    LG/AUO TFT-LED 17”

    Resolution

    1280x1024

    Show Ratio

    4:3

    Working Area

    340×273mm (W*H)

    Pixel Distance

    0.484*0.484mm (H*V)

    Visual Angle

    170°(H) / 170°(V)

    Show Color

    16.7M

    Brightness

    ≥250cd/m²

    Contrast Ratio

    ≥1000:1

    Backlight

    TFT-LED

    Life Expectance

    ≥60000 Hours







    Touch Parameters

    Type

    IR Touch (Optional)

    Touch tools

    Finger or anything opaque

    Recognizable

    ≥5mm

    Accuracy

    ±2mm; sensitive touch 92%

    Multi-point

    2/4 optional points

    Times

    Unlimited

    First response

    ≤10ms

    Lasting response

    ≤5ms





    Android Version

    Option1

    All Winner A83T: RAM:1G/ ROM:8G

    Option2

    All Winner A83T: RAM:2G/ ROM:8G

    Option3

    RockChip RK3288: RAM:2G /ROM:8G

    Option4

    RockChip RK3288: RAM:2G /ROM:16G



    PC Configurations

    Option1

    CPU:Celeron J1900 / RAM:4GB / HardDisk:500GB

    Option2

    Board:H61 / CUP:i3 / RAM:4GB / HardDisk:500GB

    Option3

    Board:H61 / CPU:i5 / RAM:4GB / HardDisk:500GB

    Option4

    Board:H81 / CPU:i7 / RAM:4GB / HardDisk:500GB



    Power Consummation

    Power Voltage

    AC100V-240V (50/60Hz)


    ≤35 W (due to Motherboard and CPU option.)

    Standby

    ≤3W

    Energy Efficiency

    0.85cd/W





    Detailed Function

    Video Format

    MP4,3GP,MPG,AVI,WMV,FLV,SWF,RMVB,MKV,VOB

    Audio Format

    MP3,WMA,AMR,OGG,AAC,WAV,FLAC,APE

    Image Format

    JPG,BMP,PNG,TIF,ICO,GIF,TGA

    Play Mode

    Horizontal, Vertical, Full Screen, Split Screen

    Log Management

    Supportive to terminal log and playlist log

    Power Mode

    Time-setting On or Off  |  Manual











    Product Concerns

    Housing/Shell

    Steel sheet

    Panel Protection

    Tempered Glass (5mm)

    Speaker

    2*5W Stereo

    Operating system

    Windows 8/10 /Android

    Control Interface

    USB2.0, RJ-45, HDMI, VGA, DVI, MIC, WIFI, 3G

    Temperature

    0℃ to 40℃

    Humidity

    20% to 80%

    Whole Size

    ××(mm) (Customized)

    Whole Color

    Black, Silver, White (Customized)

    Certificates

    ISO9001/CCC/CE/FCC/RoHS/SECURITY

    Accessories

    Remote Control, Power Cord, Key, Mounting bracket, Manual, Approval Certificate, Warranty Card

    Net Weight

    ××(kg) (Customized)



    Notice:

    All pictures and function introduction are only for reference. Accurate details are referred to Instruction brochure and Physical Package. VETO has the rights for final explanation.

    Product features:

    The appearance color can be customized according to requirements (default white green).

    Multi touch technology handwriting or any other object writing mode, automatic identification of installation free, automatic correction mode;

    The integration of LCD, infrared touch screen (other touch screen optional) and computer system has realized the integration of high-definition interactive display.

    Streamlined body, bright silver and aluminum alloy, beautiful and fashionable in design.

    Safety and anti-theft design

    1, tax enquiry system; 2, hotel enquiry system; 3, building monitoring system;

    4, traffic query system; 5, medical open inquiry system; 6, property rights trading analysis system;

    7, bank business enquiry system; 8, tourist attractions query system; 9, shopping mall touch inquiry system;

    10, telecom business open system; 11, exhibition touch guide system; 12, government departments open government system;

    13. Inquire the navigation system in public places;

    14, high-end entertainment and leisure places inquiries or system applications;

    15, the enterprise reception hall inquiry system and many other public occasions;



    Our service:

    7*24 hours technology problem solve

    Warranty policy:

    (A:VETO Technology Co.Ltd   B:Customer)

    Time:  1 year for LCD panel and 3 years for accessories.

    Solutions:During the warranty time, if B meet quality problems. B can send the product back to A for maintenance without charge. If the problem is due to B's operation mistake, A need charge the maintenance cost fee from B.

    Shipping fee: B need to pay the shipping fee from B to A and A would pay the shipping fee from A to B.
